What is a hand terminal on a calf feeder?

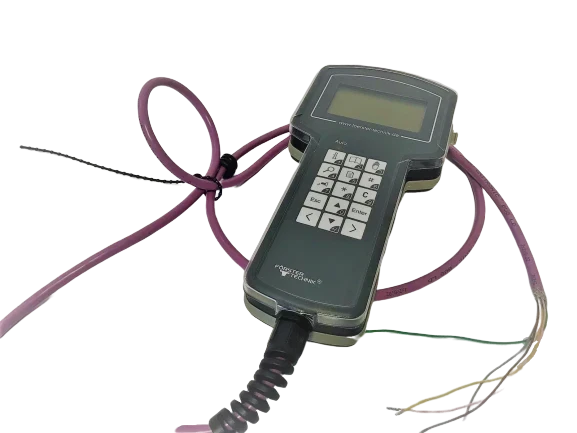

A hand terminal is the control panel used to set up and read out a calf feeder. On feeders of the Compact (+) and Vario (+) (V2/C2) type, the hand terminal hangs on a cable next to the machine in a bracket. The screen displays information such as milk allowance per calf, drinking speed, temperature, and any fault messages.
The hand terminal is therefore not a standalone gadget, but an essential part of the machine. Without a working terminal you cannot adjust feeding schedules, add or remove calves from the system, or read out faults. On many farms the terminal is used daily, sometimes several times a day, which over time causes wear to the cable, screen, and buttons.
What exactly is the hand terminal used for
The main functions of a hand terminal on a calf feeder are:
- Registering new calves and setting up a drinking schedule
- Adjusting the milk allowance per animal based on age or health
- Viewing current drinking data per calf
- Reading out faults and error messages
- Starting or checking cleaning programmes
- Manually operating the calf feeder
Because the terminal is constantly picked up, pressed, and sometimes hangs in a damp or dusty environment, protection is important.
Common problems with a hand terminal
Terminal no longer responds
If the screen stays black or the terminal does not respond to touch, first check the cable connection at the machine.
Cable damaged or broken
A damaged cable is the most common cause. Inspect the cable for kinks or breaks, especially at the connection point. A replacement cable for the hand terminal is then a simple solution without having to replace the entire terminal.
Screen or housing damaged
Drops, impacts, and dirt are the biggest enemies of the screen. Scratches on the display make it harder to read values, and a cracked housing can allow moisture to enter. In that case, replacing the complete terminal is usually the only lasting solution.
Protecting the hand terminal against wear and dirt
Many farms choose to give the hand terminal extra protection against dust, manure, and moisture. Covers are available that fit over the control panel so that the buttons and screen get dirty or damaged less quickly. For the V2/C2 version, for example, a transparent control cover for the V2/C2 hand terminal is available, and for other models a transparent control cover for the hand terminal. These covers keep the screen visible and operable while keeping out dirt and moisture.
For older terminal types with a rotary knob, there is also a separate solution: the protective cover for the rotary knob model. This cover prevents the rotary knob from being accidentally damaged.
When to replace the hand terminal
Replacing a hand terminal is necessary when:
- The screen no longer responds, even after checking the cable
- The housing is cracked and moisture can enter
- Buttons are stuck or no longer functioning
- The terminal repeatedly gives error messages that cannot be resolved with a reset
Please note, these are available in 2 types, for the Compact/Vario and for the Compact+/Vario+ (V2/C2). This is easy to recognise by the shape and the number of keys (Compact/Vario 12 keys (812121) and Compact+/Vario+ (V2/C2) 15 keys(812049)).
Maintenance and daily use
To prevent faults, it helps to wipe the hand terminal dry and clean after use, especially if milk or saliva has got onto the screen. Hang the terminal preferably in the fixed bracket on the machine. Periodically check the cable for wear spots at the connector, as this is where most breaks occur. Using a protective cover significantly extends the life of the screen and control buttons, which over time prevents unnecessary replacement.
Frequently asked questions about the hand terminal
Can I replace just the cable instead of the entire hand terminal?
Yes, if the screen and housing are still working properly but only the cable is damaged, a replacement cable is sufficient. That is cheaper than a complete terminal.
Is the hand terminal universal for all calf feeders?
No, the hand terminal is model-specific. A terminal for the Compact+ or Vario+ (V2/C2) does not simply fit another type of machine. Always check the model of your machine and look at the shape/number of keys on the hand terminal before ordering a replacement part.
How do I prevent the hand terminal from getting dirty or damaged quickly?
Use a protective cover over the control panel and hang the terminal in a fixed location after use instead of placing it on the ground or a damp surface.
