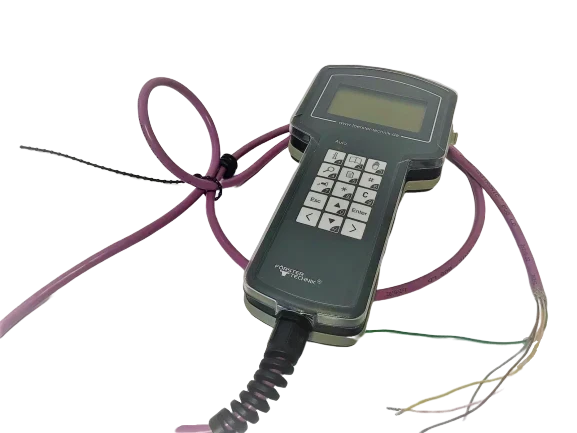

What is a hand terminal on a calf feeder?
A hand terminal is the control panel used to configure and read out a calf feeder. On feeders of the Compact (+) and Vario (+) (V2/C2) type, the hand terminal hangs on a cable next to the feeder in a holder. The screen displays information such as milk allowance per calf, drinking speed, temperature, and any error messages.
The hand terminal is therefore not a standalone gadget, but an essential part of the feeder. Without a working terminal, you cannot adjust feeding schedules, add or remove calves from the system, or read out faults. On many farms the terminal is used daily, sometimes multiple times a day, which over time causes wear on the cable, the screen, and the buttons.
What exactly is the hand terminal used for
The main functions of a hand terminal on a calf feeder are:
- Registering new calves and setting up a drinking schedule
- Adjusting the milk allowance per animal based on age or health
- Viewing current drinking data per calf
- Reading out faults and error messages
- Starting or checking cleaning programmes
- Manually operating the calf feeder
Because the terminal is constantly being gripped, pressed, and sometimes hangs in a damp or dusty environment, protection is important.
Common problems with a hand terminal
Terminal no longer responds
If the screen stays black or the terminal does not respond to input, first check the cable connection at the feeder.
Cable damaged or broken
A replacement cable for the hand terminal is a simple solution without having to replace the entire terminal.
Screen or housing damaged
Drops, impacts, and dirt are the biggest enemies of the screen. Scratches on the display make it harder to read values, and a cracked housing can allow moisture to enter. In that case, replacing the complete terminal is usually the only lasting solution.
Protecting the hand terminal against wear and dirt
Many farms choose to give the hand terminal extra protection against dust, manure, and moisture. Covers are available that fit over the control panel so that the buttons and screen are less likely to become dirty or damaged. For the V2/C2 version, for example, a transparent control cover for the V2/C2 hand terminal is available, and for other models a transparent control cover for the hand terminal. These covers keep the screen visible and usable while keeping out dirt and moisture.
For older terminal types with a rotary knob, there is also a separate solution: the protective cover for the rotary knob model. This cover prevents the rotary knob from being accidentally damaged.
When should you replace the hand terminal
Replacing a hand terminal is necessary when:
- The screen no longer responds, even after checking the cable
- The housing is cracked and moisture can enter
- Buttons are stuck or no longer functioning
- The terminal repeatedly displays error messages that cannot be resolved with a reset
Please note, these are available in 2 types: for the Compact/Vario and for the Compact+/Vario+ (V2/C2). This is easy to recognise by the shape and by the number of keys (Compact/Vario 12 keys (812121) and Compact+/Vario+ (V2/C2) 15 keys(812049)).
Maintenance and daily use
To prevent faults, it helps to wipe the hand terminal dry and clean after use, especially if milk or saliva has got onto the screen. Hang the terminal in the fixed bracket of the machine whenever possible. Periodically check the cable for wear near the connector, as this is where most breaks occur. Using a protective cover significantly extends the lifespan of the screen and control buttons, which in the long run prevents unnecessary replacement.
Frequently asked questions about the hand terminal
Can I replace just the cable instead of the entire hand terminal?
Yes, if the screen and housing are still working fine but only the cable is damaged, a replacement cable is sufficient. That is cheaper than a complete terminal.
Is the hand terminal universal for all calf feeders?
No, the hand terminal is model-specific. A terminal for the Compact+ or Vario+ (V2/C2) does not fit another type of feeder. Always check the model of your feeder and look at the shape/number of keys of the hand terminal before ordering a replacement part.
How do I prevent the hand terminal from getting dirty or damaged quickly?
Use a protective cover over the control panel and hang the terminal in a fixed location after use rather than placing it on the ground or a damp surface.
